With clean spectral signals extracted from the AIRS-CH0 and FGS1 detectors, the next challenge emerges: individual wavelength channels are incredibly noisy. Each extracted time series shows significant frame-to-frame variations that could mask the subtle exoplanet atmospheric signals we’re trying to detect. Time for some smoothing.

Checkout the wavelength smoothing notebook on GitHub.

1. The noise problem

After signal correction and extraction, the individual frame spectra and the overall transit signal look great. But I still have a lot of frame-to-frame noise in the individual wavelength channels.

The solution requires intelligent smoothing that preserves real signals while reducing noise. Three different approaches were tested on the wavelength time series:

Comparison of smoothing methods

The comparison reveals important trade-offs:

  • Savitzky-Golay filtering: Excellent signal preservation but computationally expensive
  • Simple convolution: Good smoothing but can introduce artifacts at edges
  • Moving average: Clean results with optimal performance for large datasets

For processing 1100+ planets within Kaggle’s time constraints, the moving average emerges as the clear winner - it provides excellent noise reduction while being computationally efficient enough for production use.

2. Efficient moving average implementation

The key insight is using cumulative sums for O(n) moving average computation instead of O(n×w) sliding window calculations:

def moving_average_rows(a: np.ndarray, n: int) -> np.ndarray:
    '''Moving average smoothing

    Args:
      a: frame time series for one planet
      n: smoothing window width

    Returns:
      Smoothed data, number of frames will be less by 0.5 * n
    '''

    # Compute cumulative sum along axis 1 (across columns)
    cumsum_vec = np.cumsum(a, axis=1, dtype=float)

    # Subtract cumulative sum at window start from window end
    cumsum_vec[:, n:] = cumsum_vec[:, n:] - cumsum_vec[:, :-n]

    # Return averages for each window
    return cumsum_vec[:, n - 1:] / n

This approach scales beautifully - it can smooth all wavelength channels across a sequence of frames simultaneously with minimal computational overhead.

3. Spectral time series results

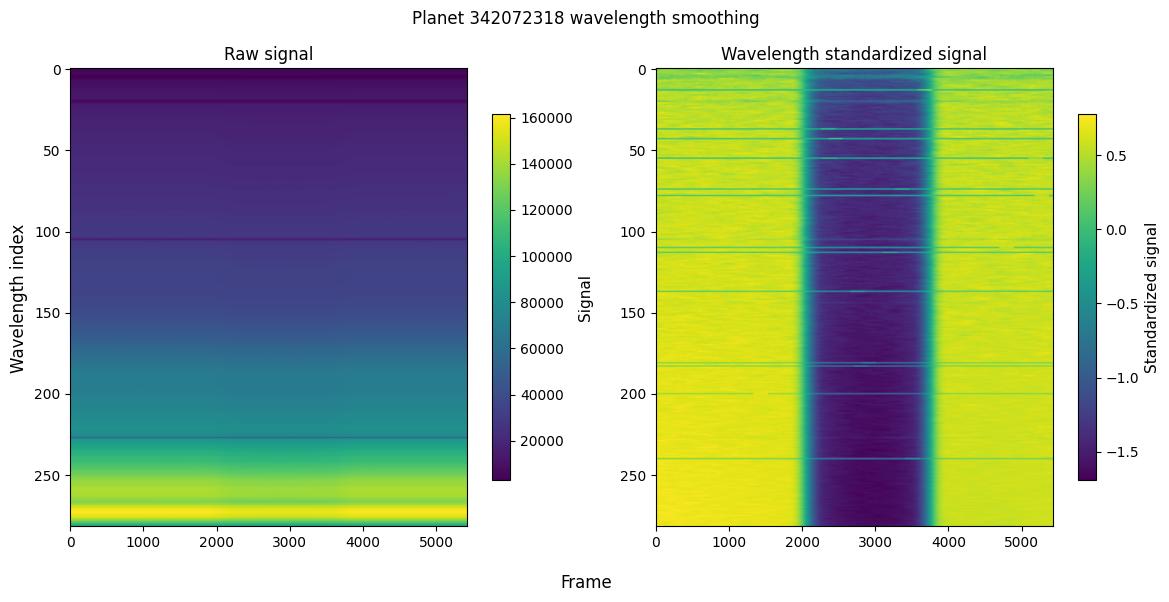

Applying the moving average smoothing to the extracted data and standardizing each wavelength produces remarkably clean spectral time series:

Smoothed spectral time series

The smoothed spectrogram reveals several important features:

  • Clear temporal structure: Systematic variations that correspond to the exoplanet transit
  • Reduced noise floor: Frame-to-frame variations are dramatically suppressed

4. Exoplanet transit signal

The total signal per frame now looks even better - yes that is a scatter plot on the right!

Smoothed spectral time series

5. Parameter optimization

The smoothing window size becomes a critical parameter balancing noise reduction against signal preservation. This is included as a tunable parameter in the signal extraction pipeline. In limited experimentation thus far, a window size of ~200 appears to be the sweet spot - but this should be rigorously optimized later.

6. Integration with signal extraction

The wavelength smoothing integrates seamlessly into the signal extraction pipeline as an optional final step:

from ariel_data_preprocessing import SignalExtraction

extractor = SignalExtraction(
    input_data_path='data/corrected',
    output_data_path='data/extracted',
    inclusion_threshold=0.8,
    smooth=True,              # Enable wavelength smoothing
    smoothing_window=200      # Optimize for transit timescales
)

output_file = extractor.run()

When enabled, the smoothing is applied to each wavelength channel independently, preserving the full spectral information while dramatically improving signal quality.

Check it out on PyPI: ariel-data-preprocessing

The journey from raw detector counts to science-ready spectral time series almost complete. Next up, a cool trick to generate more diversity in dataset and a path to uncertainty estimation…
